DJI Zenmuse H30 Series

Unparalleled Vision, Day or Night

DJI has revealed its newest breakthrough, the Zenmuse H30 Series, representing a leap forward in imaging technology. Designed to transcend the limitations of day and night vision, this cutting-edge payload series was built to thrive in all-weather conditions and boasts multi-sensor capabilities.

Key Capabilities: Zenmuse H30 Series Integrated Modules

DJI Zenmuse H30 Series Kit

The flagship series integrates five major modules: a wide-angle camera, a zoom camera, an infrared thermal camera (H30T only), a laser rangefinder, and an NIR auxiliary light.

With advanced technology, the Zenmuse H30 series leverages cutting-edge intelligent algorithms, ensuring unmatched performance in every mission.

Elevate Your Missions with the H30 Series

Compatible with the DJI Matrice 350 and Matrice 300 (only with DJI RC Plus), the Zenmuse H30 Series is set to revolutionize countless applications across public safety, energy inspection, water conservation, forestry, and more.

Powerful Multi-Sensor Flagship Payloads

The all-weather, full-day and multi-sensor flagship payloads are set to revolutionize perception and imaging standards, transcending the limitations of day and night vision.

SPEAK WITH AN EXPERT
DJI Zenmuse H30 & H30T

Zenmuse H30 Series Overview

  • 34x Optical Zoom

  • 400x Digital Zoom

  • More Stable Telephoto Imagery

  • 3000m (~9842ft) Laser Rangefinder

  • Supports Full-Color Night Vision

  • Supports Black and White Night Vision and NIR Illumination

  • 1280×1024 Resolution

  • High-Res Mode for Precise Observation

  • Simultaneous Zoom for Visual and IR Cameras

  • Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F)

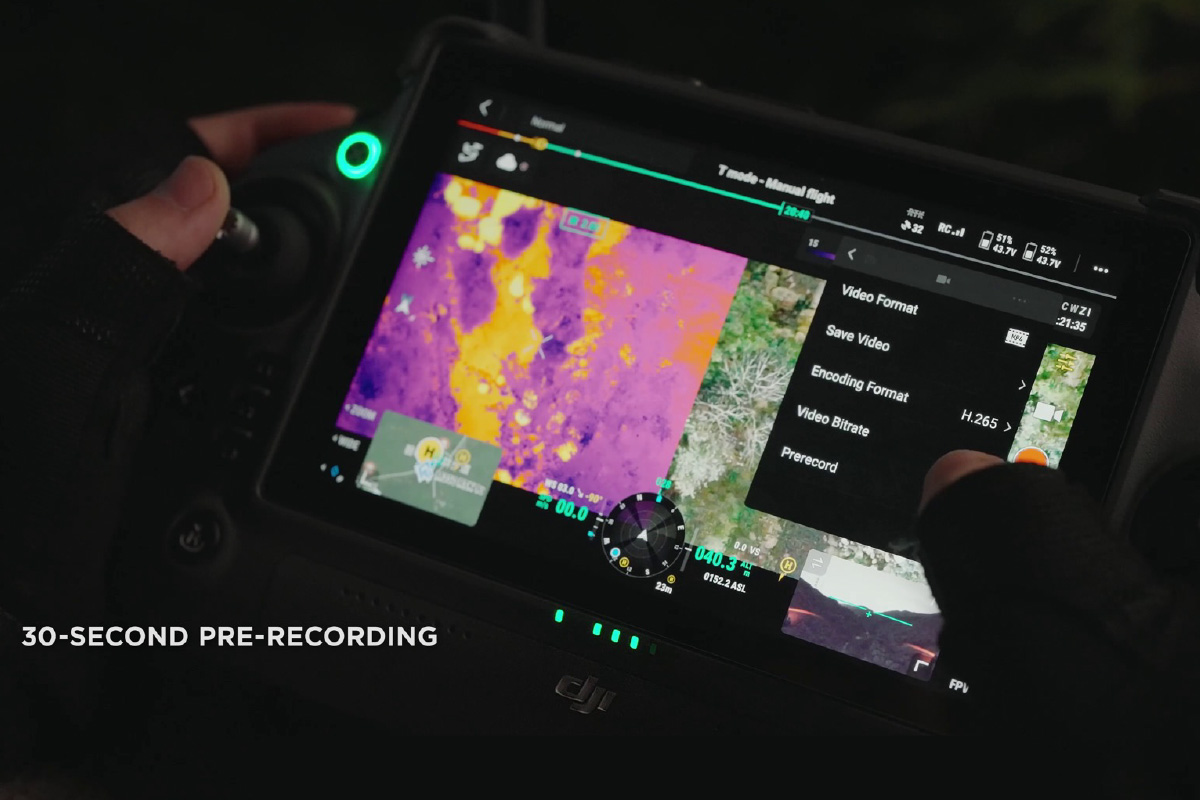

  • Supports Pre-Recording

  • Media and Transmission Encryption with One-click Log Clearance

  • Information Sync on the Cloud for Air and Ground-Based Collaborative Operation

  • Smart Capture for Improved Imaging

  • Electronic Dehazing

  • IP54 Ingress Protection

  • -20° to 50° C (-4° to 122° F) Operating Temperature

DJI Zenmuse H30 Series multi-sensor payload

Zenmuse H30 vs. H20 Series: Enhanced Capabilities

The Zenmuse H30 Series marks a significant advancement from the H20 Series, introducing a host of enhancements that elevate its performance to new heights. These improvements include:

  • Superior Visible Light Capability: 34x maximum optical zoom and 400x maximum digital zoom.
  • Improvement in Thermal Camera (H30T): resolution improved from 640 × 512 to 1280 × 1024. The temperature measurement range is increased to -20℃ to 1600℃ ~(-4°F to 2912°F).
  • Improvement in Night Scene Mode: offering settings at 25fps, 15fps, 5fps. Support NIR auxiliary light illumination.
  • Laser Rangefinder: detection range up to 3000m (~9842ft).
SPEAK WITH AN EXPERT

Top Industry Applications

Public Safety

Energy Inspection

Water & Forestry

Emergency & Firefighting
