DJI Dock 2 is 75% smaller and 68% lighter than its predecessor and is easily transportable with just two individuals, which makes for flexible installation and reduces installation costs.

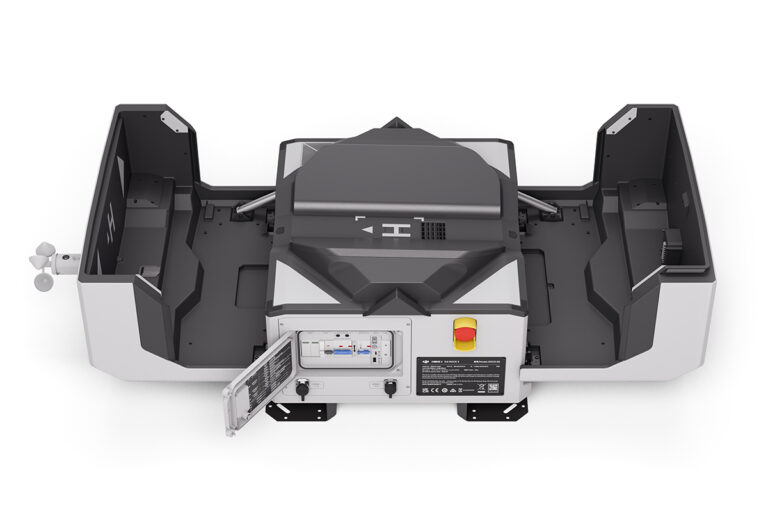

Meet the New DJI Dock 2
Easy Operation, Superior Results
DJI's highly anticipated release, DJI Dock 2, is set to revolutionize the drone docking station market. More powerful yet noticeably smaller, it caters directly to the evolving needs of users. Designed for seamless operation, it effortlessly deploys Matrice 3D or 3TD drones with enhanced ease and security, ensuring optimal efficiency in every mission.
Easy Deployment, Ready to Go
Lightweight Design
Efficient Site Evaluation
Before deployment, the aircraft can detect the surrounding environment using vision sensors and quickly determine whether the area has strong GNSS signals. This new vision-based evaluation markedly accelerates site selection, reducing the required time from five hours to twelve minutes or less.
Enhanced Features for Ultimate Drone Automation
Lightweight and Easy to Deploy
IP55 Ingress Protection
10km Max Effective Operating Radius
Integrated Environmental Monitoring System
Cloud-Based Modeling
FlyTo Tasks
Private Deployment
Third-Party Payload Support
DJI Dock 2: Unmatched Reliability
IP55 Dustproof and Waterproof
DJI Dock 2 is designed with safeguarding in mind. With an IP55 dust and water resistance rating, Dock 2 can operate steadily for extended periods even in harsh climates and environments.
Integrated Environmental Monitoring System
DJI Dock 2 integrates multiple sensors, including rainfall, wind speed, and temperature gauges, to perceive real-time weather changes. In conjunction with online weather forecasting, it can provide timely warnings or terminate flight tasks using DJI FlightHub 2 to effectively reduce flight risk.

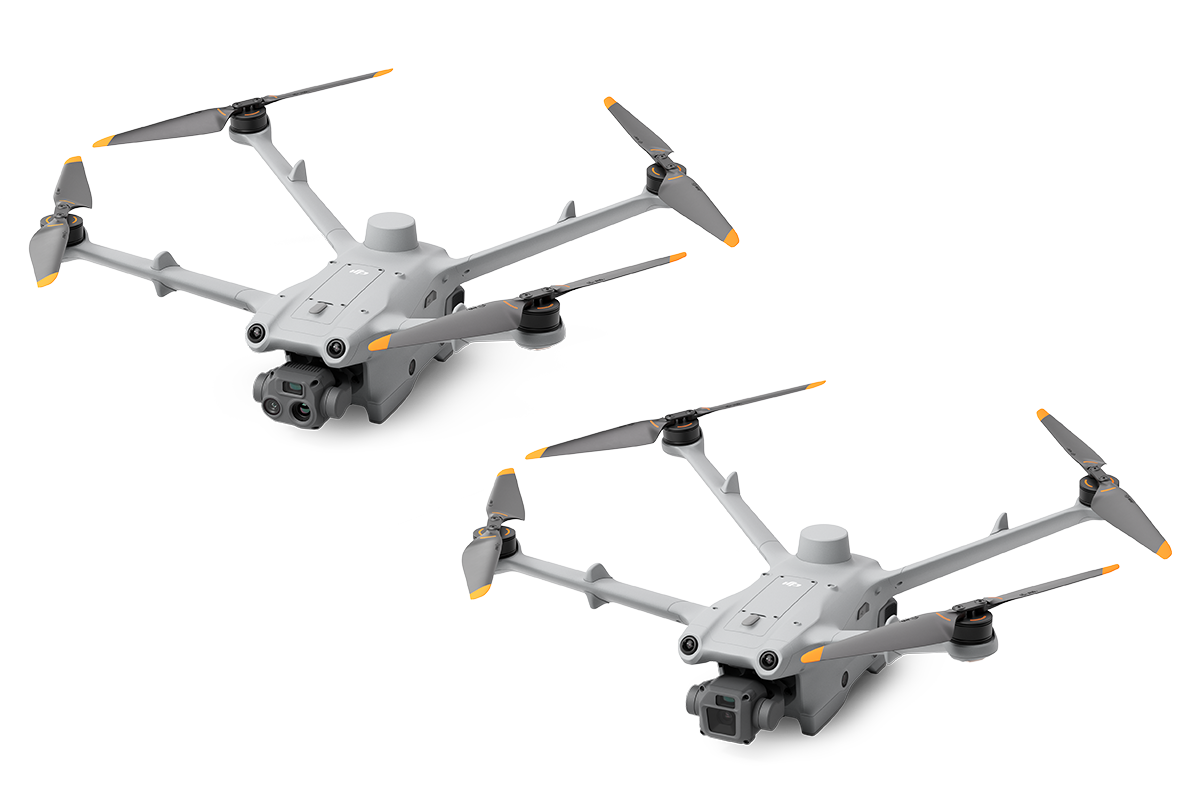

High-Performance Aircraft Models
The all-new DJI Matrice 3D/3TD is specifically designed for DJI Dock 2. Matrice 3D is equipped with both a tele camera and a wide-angle camera with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks. Matrice 3TD, outfitted with a wide-angle camera, a tele camera, and an infrared camera, can depict both visible light and thermal images, making it suitable for security and inspection operations.
DJI Matrice 3D
Wide-Angle Camera
- 4/3 CMOS
- 24mm Format Equivalent
- 20MP Effective Pixels
- Mechanical Shutter
Tele Camera
- 1/2-inch CMOS
- 162mm Format Equivalent
- 12MP Effective Pixels
DJI Matrice 3TD
Wide-Angle Camera
- 1/1.32-inch CMOS
- 24mm Format Equivalent
- 48MP Effective Pixels
Tele Camera
- 1/2-inch CMOS
- 162mm Format Equivalent
- 12MP Effective Pixels
Infrared Camera
- 40mm Format Equivalent
- Normal Mode: 640×512@30fps
- UHR Infrared Image Mode: 1280×1024@30fps
- 28x Digital Zoom
Superior, Comprehensive Performance
Thanks to its powerful operation capabilities, DJI Matrice 3D/3TD meets the requirements of high-standard operations.
IP54
Dustproof and Waterproof
50 Mins
Max Flight Time
6-Directional
Obstacle Sensing System
10 km
Max Effective Operating Radius
400
Battery Cycles
Integrated RTK Module
±3cm Positioning Accuracy
