HOVERMAP

AUTONOMOUS AND VERSATILE, THE SLAM-BASED MAPPER MAKING DATA CAPTURE FAST AND SIMPLE

THE HOVERMAP PAYLOAD

Hovermap is lightweight, and yet robust enough to withstand the demands of environments such as underground mines. Made from a machined aircraft-grade aluminum frame combined with carbon fiber composite paneling, the Hovermap payload is light yet strong enough to support its rotating LiDAR while remaining stable in flight. Switching between drone to walking scans can be done with the click of a button using Hovermap’s quick-release mechanism.

HOVERMAP FEATURES

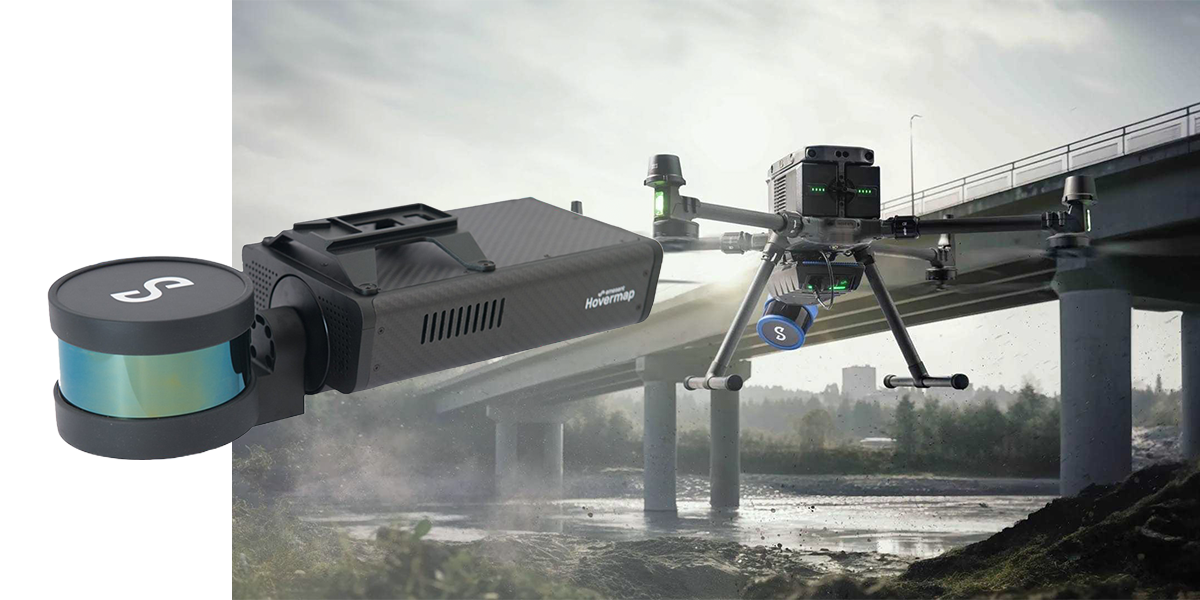

Emesent Hovermap LiDAR Sensor Bridge Scanning
MULTIPLE FLIGHT MODES
  • Mapping Mode
  • Pilot Assist Mode
  • Autonomous Waypoints
ACCURACY
  • General environments mapping +/- 20mm
  • Underground/indoor environments mapping +/- 15mm
  • LiDAR +/- 30mm
LIGHTWEIGHT & VERSATILE
  • 1800g (4lbs.)
  • For use with drones, backpacks, vehicles, and more
  • Supported by DJI M350 RTK & FreeFly Astro

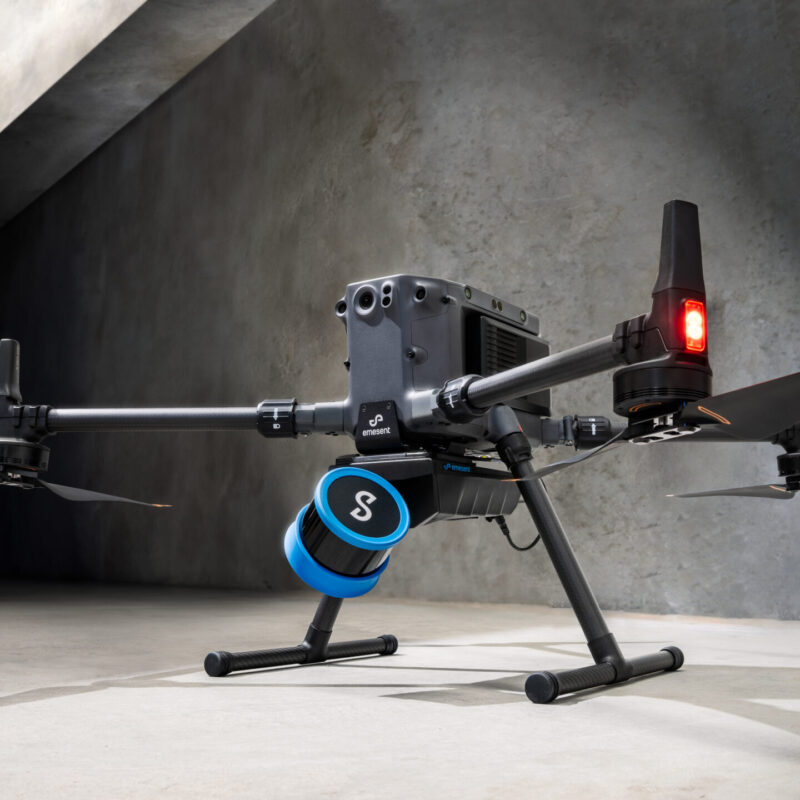

Emesent Hovermap LiDAR Sensor with DJI Matrice 350 RTK

VARIOUS AUTONOMY LEVELS

Mapping Mode

  • Provides SLAM-based mobile mapping
  • Carry Hovermap or mount it to a drone or vehicle
  • Use with Emesent’s backpack, cage, or vehicle mount accessories

Pilot Assist Mode

  • LiDAR-based omnidirectional collision avoidance
  • GPS-denied position hold and velocity control
  • Enables safe line-of-sight flight indoors, underground or close to structures
  • Includes all AL0 features

Autonomous Waypoints

  • Enables beyond line-of-sight autonomous flight in GPS-denied environments
  • Live 3D map streamed to tablet
  • Tap-to-Fly: set smart waypoints using the live map
  • Includes all AL1 features
