DRONE-BASED PRESSURE WASHING RIGS

A Complete Line of Pressure Washing, Soft Washing, and Pure Water Rigs

GROUND SUPPORT FOR AERIAL CLEANING

Built to fit the way you work, the lineup includes van skid and enclosed trailer configurations with standard manual or RigLink remote controls. Every rig integrates pressure washing, soft washing, and pure water systems into one platform for the ABZ Innovation C10.

CONSISTENT CLEANING POWER

Featuring an 8.0 GPM, 3,500 PSI pressure wash system, 11.5 GPM soft wash system, on-the-fly chemical metering, onboard pure water system, and 200-gallon water tank, each rig delivers consistent cleaning power across the line.

Three Systems in One: Pressure wash, soft wash, and pure water on a single van skid or trailer.

Mix While You Clean: The ClearView Hydro-Mixer XL meters raw water, chemical, and soap on the fly, with no batch mixing. A soap selector switches between two soaps.

Onboard Supply: A 200-gallon raw/DI water tank, a 55-gallon chem tank, and two 7-gallon soap tanks on every rig.

Your Configuration: Van skid or enclosed trailer. Standard manual operation, or RigLink remote start/stop with electric reels.

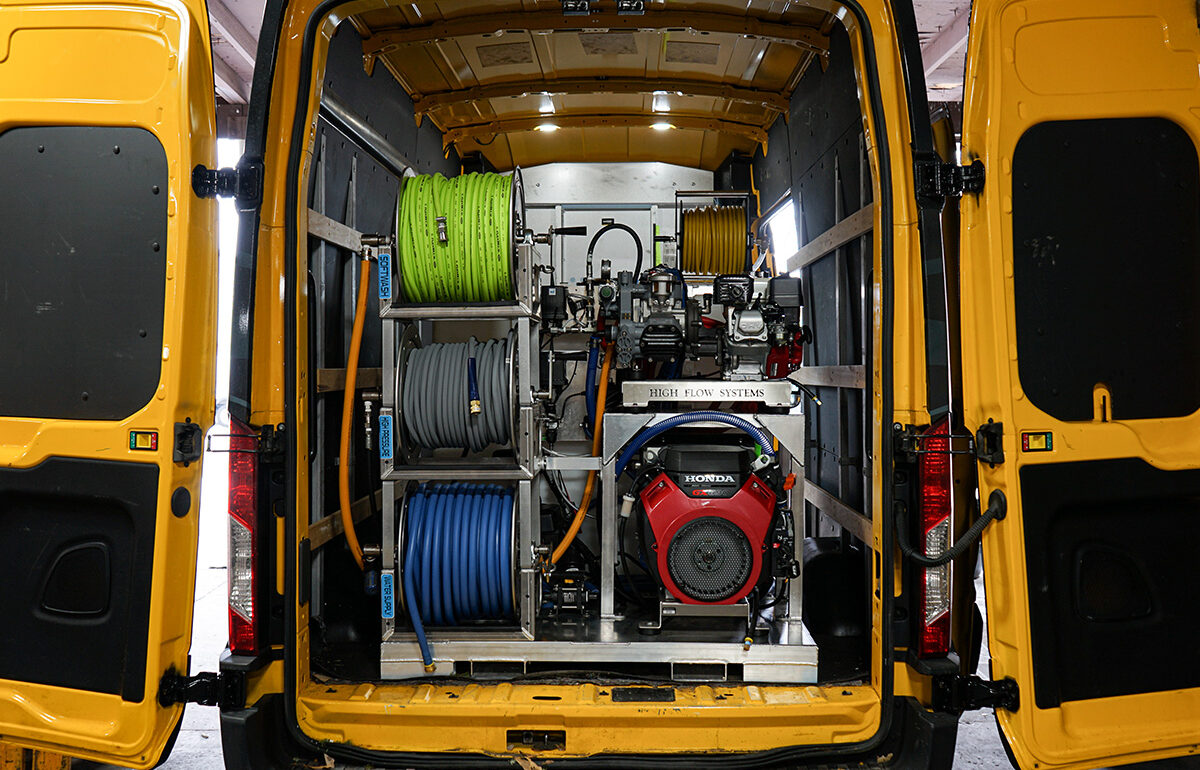

CORE VAN SKID

A van-mounted skid with pressure wash, soft wash, and 3-stage DI pure water, manual reels and injection, built for high-top vans.

Key Specs

Format: 96″L x 48″W x 60″H van skid (Transit, ProMaster, Sprinter)
Pressure wash: 8.0 GPM, 3,500 PSI, Honda GX690
Soft wash: 11.5 GPM, 300 PSI, Comet P40, Honda GX160/GX200
Chemical: manual injector, ClearView V4, Hydro-Mixer XL
Pure water: 3-stage DI, manual TDS meter
Tanks: 200-gal water, 55-gal chem, 2x 7-gal soap
Reels: three 12″ manual
Electrical: group 27 marine battery

APEX VAN SKID

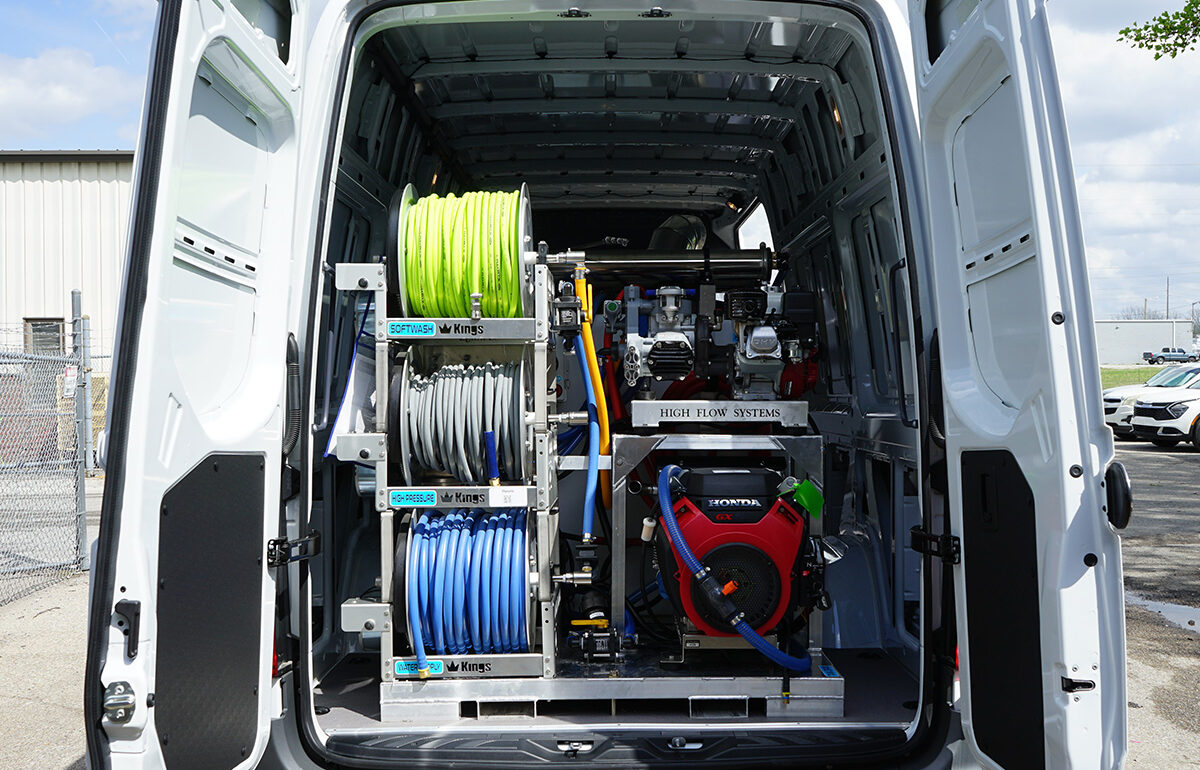

Rear of a white work van with mounted hose reels and a Honda engine for high-flow pressure washing, neon green and blue hoses visible in racks

A van-mounted skid with RigLink remote start/stop, electric reels, and 4-stage RO/DI pure water, built for high-top vans.

Key Specs

Format: 96″L x 48″W x 60″H van skid (Transit, ProMaster, Sprinter)
Pressure wash: 8.0 GPM, 3,500 PSI, Honda GX690, RigLink remote
Soft wash: 11.5 GPM, 300 PSI, Comet P40, Honda GX160/GX200, RigLink remote
Chemical: RigLink remote injector, ClearView V4, Hydro-Mixer XL, remote rinse
Pure water: 4-stage RO/DI, 3 RO membranes, 110V booster, dual TDS meter
Tanks: 200-gal water, 55-gal chem, 2x 7-gal soap
Reels: three 12″ electric
Electrical: deep-cycle battery, fuse panel, onboard charger

SPEAK WITH AN EXPERT

RIDGE TRAILER

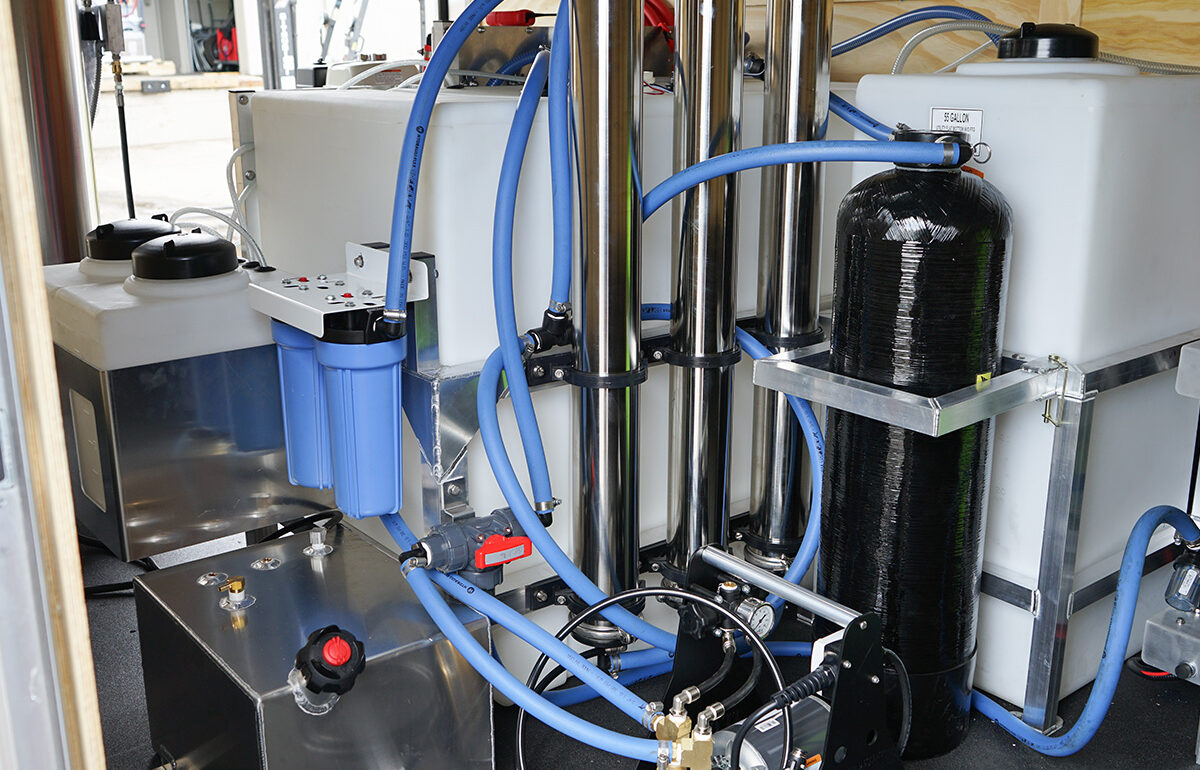

Industrial water filtration system: vertical stainless filter housings, blue hoses, white reservoir, and a pump in a workshop setup.

The manual pressure wash, soft wash, and 3-stage DI system in a 7′ x 14′ enclosed trailer.

Key Specs

Format: American-made 7′ x 14′ tandem axle (3,500 lb/axle) enclosed V-nose trailer
Pressure wash: 8.0 GPM, 3,500 PSI, Honda GX690
Soft wash: 11.5 GPM, 300 PSI, Comet P40, Honda GX160/GX200
Chemical: manual injector, ClearView V4, Hydro-Mixer XL
Pure water: 3-stage DI, manual TDS meter
Tanks: 200-gal water, 55-gal chem, 2x 7-gal soap
Reels: three 12″ manual
Electrical: group 27 marine battery

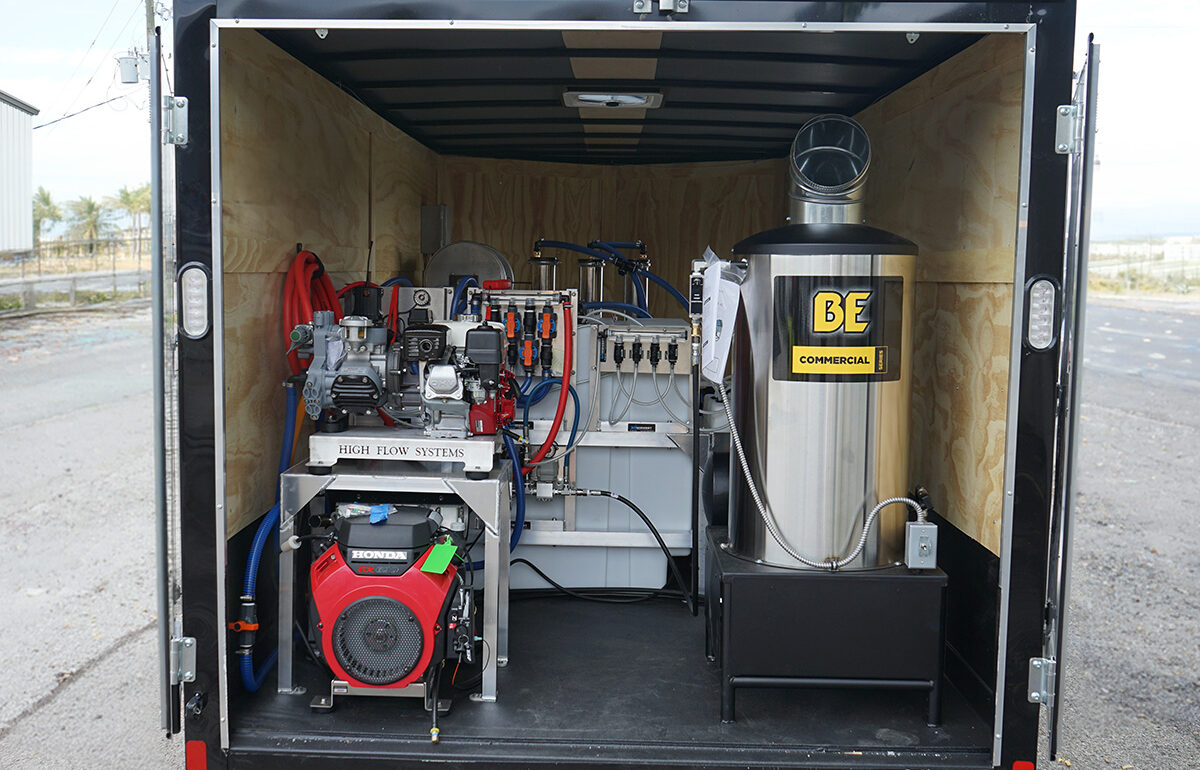

PEAK TRAILER

A 7′ x 14′ enclosed trailer with RigLink remote start/stop, electric reels, and 4-stage RO/DI pure water.

Key Specs

Format: American-made 7′ x 14′ tandem axle (3,500 lb/axle) enclosed V-nose trailer
Pressure wash: 8.0 GPM, 3,500 PSI, Honda GX690, RigLink remote
Soft wash: 11.5 GPM, 300 PSI, Comet P40, Honda GX160/GX200, RigLink remote
Chemical: RigLink remote injector, ClearView V4, Hydro-Mixer XL, remote rinse
Pure water: 4-stage RO/DI, 3 RO membranes, 110V booster, dual TDS meter
Tanks: 200-gal water, 55-gal chem, 2x 7-gal soap
Reels: three 12″ electric
Electrical: deep-cycle battery, fuse panel, onboard charger
