CZI PAYLOADS
PROFESSIONAL
UAV Mission Payloads
CZI MP130 V2 Loudspeaker
This Long Range Acoustic Device (LRAD) transmits to an effective range of up to 500 meters by DJI PSDK link. The ultrahigh sound pressure clearly transmits voice communication to distant locations.
Dual Link Handheld Mic:
The MP130 also comes with a standard microphone with color screen visualization.
Multiple Play Modes:
With multiple play modes, the MP130 offers real-time preplay, TTS, voice upload, audio file upload and playback, CZI language library/text library calls. It has a 130dB shock volume and 500m propagation distance over the LTE link for long-distance reach.
Synchronous Pitching, Precise Broadcasting:
This payload is plug-and-play through the DJI interface, allowing automatic synchronous pitching. You can control and follow the gimbal camera swing to achieve the best broadcast effect.
CZZN MP140 Digital Voice Broadcasting System
This UAV Long Range Acoustic Device (LRAD) can
cover an area of up to 1000 meters.
Super Loud LRAD:
The maximum sound pressure can reach 140dB, and the sound pressure is up to 120dB at a distance of 10m. The effective sound raising distance is 1000m.
Built-in Micro Pan Tilt:
Three-axis, anti-shake micro PTZ, 1080p full HD camera.
Multiple Broadcast Modes:
TTS text to speech, shouting in real time, recording cycle, memory audio file playback.
Color Screen Handheld Microphone:
0-90 ° pitch adjustment function, assembly to quick release adapter ring, efficient heat dissipation, and three prevention design.

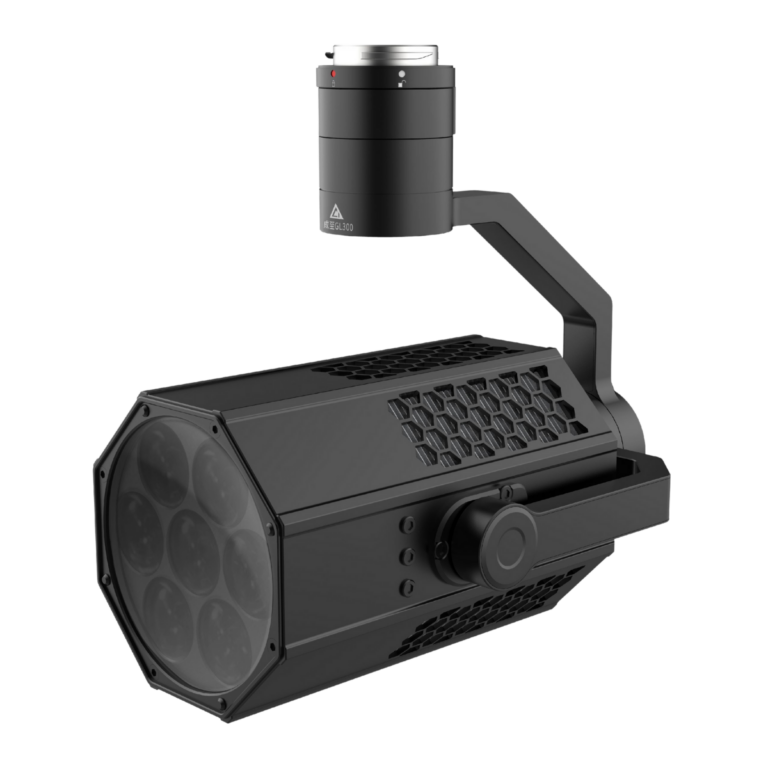

CZI GL300 Gimbal Searchlight
This high-power gimbal searchlight can illuminate a fixed point and provide ultra-long time stable lighting while connected to a tethered power system. The GL300 has a brightness of 7 LED beads, which offer 300W and 21000-lumens, and can rotate to follow objects.
It is a convenient and flexible multi-angle lighting payload with a standard interface and universal mount. The GL300 can be used with a tethered power supply; battery-powered options are also available.
DJI SkyPort V2.0 interface is adopted.
Suitable for the DJI Matrice series; CZZN universal interface can be selected.
CZI GL60 Plus Spotlight
The GL60 Plus gimbal searchlight adopts 4 groups of optical imaging components, each group consists of 4 lenses combined, emitting a sharp light column with an angle of 15 degrees, consistent color and even brightness, and stable output of 24lux optimal illumination, effective irradiation distance up to 150 meters.
LED Linear Dimming: High power LED light source, maximum power 120W, 100 meters of ground illumination 24lux, linear shading, the license plate was not exposed.
Non-reflective Bowl Design: No secondary light spot, reduce the loss of effective brightness, with strong light explosion and flash mode, it can silently drive away and indicate the direction.
Imaging Optical Technology: Imaging optics, 4 sets of optical lens sets, 1 set of 4 lenses, 15-degree luminous angle
Ultra Lightweight Design: Fully sealed fuselage, IP55 waterproof and dustproof, new die casting heat dissipation process, 0.7 kg ultra-lightweight, flexible use, and longer endurance.

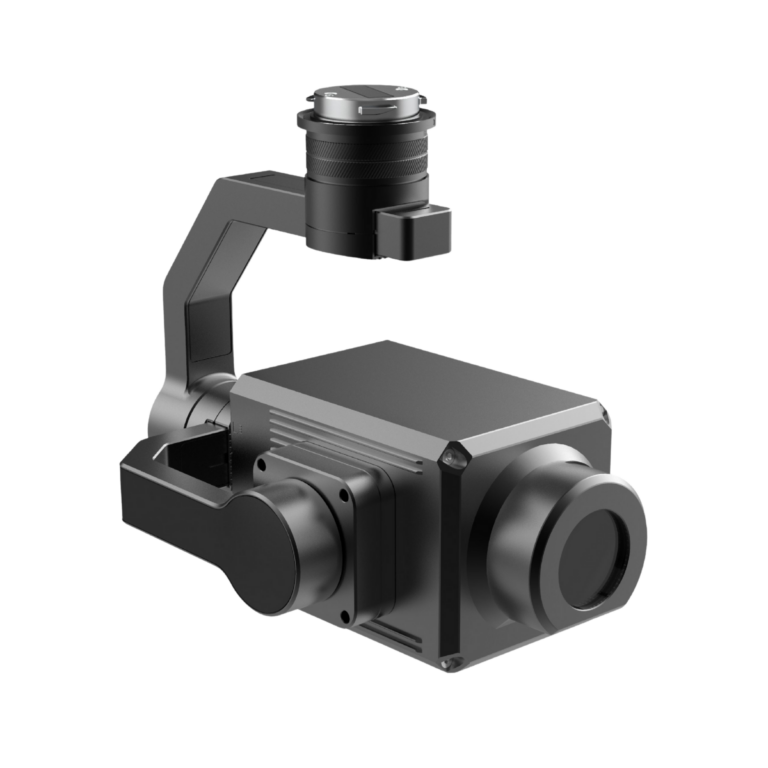

CZI IR10 Infrared Laser Zoom Searchlight
Great for stealth surveillance, the IR10 has a 70X optical zoom and an infrared fill-in light distance of 1000+ meters. Infrared Supplementary Light, Excellent
Permeability: Optical fiber laser light source is used, the output power reaches 12W, the effect of penetrating misty rain haze is good, exposure range up to 1500 meters.
Linear Zoom, Flexible Dimming: 70 x zoom accurate tracking and reconnaissance, linear light and dark regulation, flexible brightness control.
Imaging Grade Optics, Industrial-Grade Protection: Imaging optical lens group, the light is sharp -35℃ cold start is supported, waterproof and dustproof. With an integrated smart chip, the IR10 offers automatic detection of power supply status and lamp panel temperature. This protects against overheating and excess voltage, allowing the IR10 to power off automatically for enhanced safety.

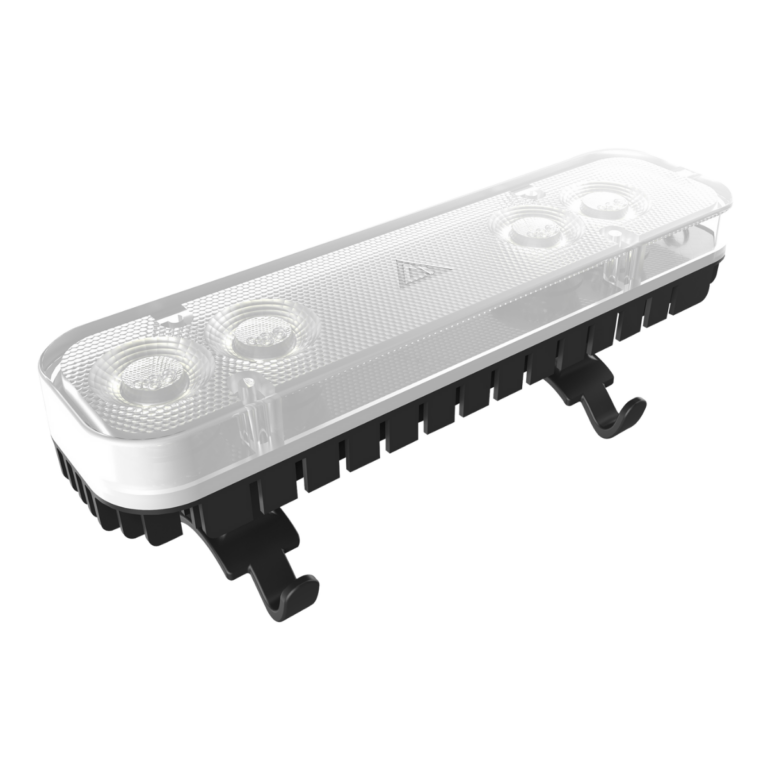

CZI FL48 Red & Blue Flashing Lights
Used as a deterrent in law enforcement or as an identity marker for emergency response teams, the FL48 red and blue flashing lights offer strong performance.
With a flicker frequency of up to 150 times/min, these lights are still visible under a hot sun and a clear sky.
The Control is Convenient: Added blaster signal control box, development based on DJI OSDK, synchronizes the UAV data link, control is safer and more convenient.
Easy to Operate: CZZN software control is adopted, at the same time retaining the suspension window function, the UAV and FL48 can be synchronously controlled on the PILOT interface
Flexible Power Supply: Adapted to DJI M300 RTK UAV, use OSDK port for power supply and communication control, reduce out-of-pocket power troubles, streamlined and flexible power supply.

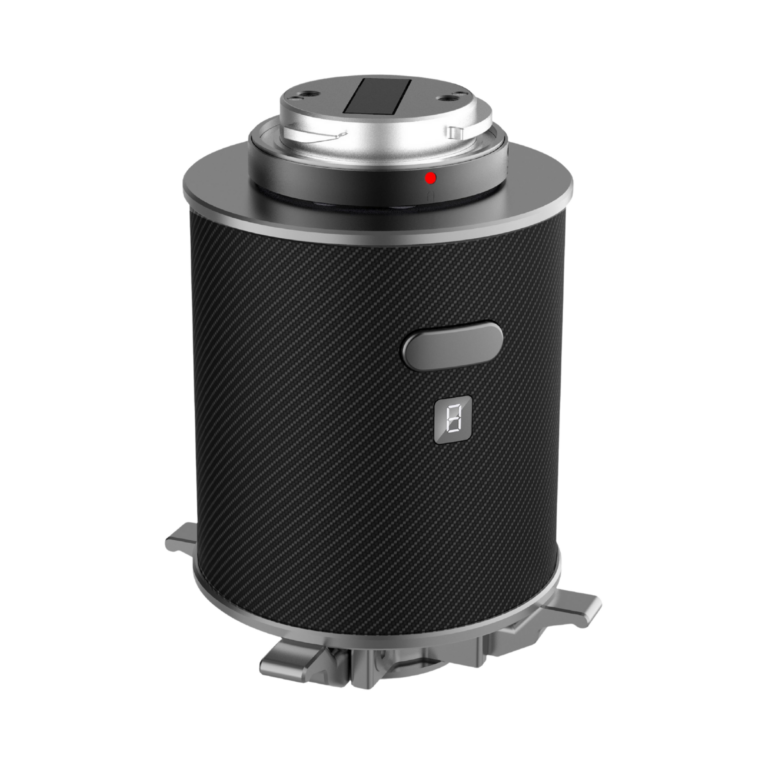

CZI TH4 Throwing Hook V2
The TH4 throwing hook connects through the DJI SkyPort V2.0 interface and is compatible with the DJI Matrix M210 and M300 RTK UAV. It can carry 40kg and can be released up to 4 times, making it ideal for use in emergency rescue and material delivery.
Small but Strong: Its own weight is 320 g, with a maximum of 10 kg per toss, and a total of 40 kg can be loaded.
Convenient and Quick: Quick installation with DJI SkyPort V2.0, quick loading of supplies.
The Control is Convenient: No third-party controller, automatically identifies the loading prompt for a real-time information window
Safe and Reliable: Optimize the usage process and reduce the failure rate, various exception handling mechanisms to prevent safety accidents.
CZI F10 Flame Thrower for Power Transmission Lines & More
The FT10 flame thrower is ideal for power grid cleaning. The fuel is mixed alcohol, which is an environmentally friendly alternative to traditional fuels, like gasoline.
