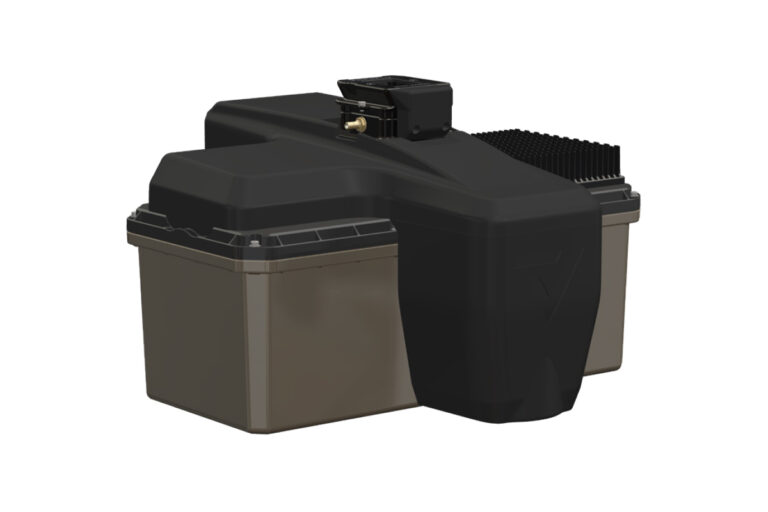

GeoCue TrueView 641
Affordable, NDAA-Compliant Engineering-Grade LiDAR
The TrueView 641 brings engineering-grade accuracy and long-range performance into a more accessible package, expanding NDAA-compliant options for surveyors, engineers, and mapping professionals. Developed in partnership with Triple-IN Laser Technic, this innovative aerial LiDAR system combines European engineering expertise with GeoCue’s proven integration, software, and customer support.
Lightweight, reliable, and designed for real-world workflows, the TrueView 641 is the new standard for affordable, NDAA-compliant engineering-grade LiDAR.
- Data Collection LiDAR + Imagery
- LiDAR Scanner Single Beam, Triple-IN SLP-LW
- LiDAR Beams/Returns Up to 6
LiDAR Range – usable 170 m for targets with 20% reflectivity - Positioning and Orientation System TrueNav
- Pulse Repetition Rate Up to 125 (kHz)
- Precision: ≤ 3 mm
- Accuracy: ≤ 4 mm
- Field of View 120°
System Performance
- Precision observed on one Strip: Typical 20 mm, Less than 15 mm (1 sigma) observed at 75 m on concrete
- Accuracy: Typical 3 cm RMSE, better than 5 cm 3D RMSE – depending on GNSS conditions, accuracy of control points and coordinate system
