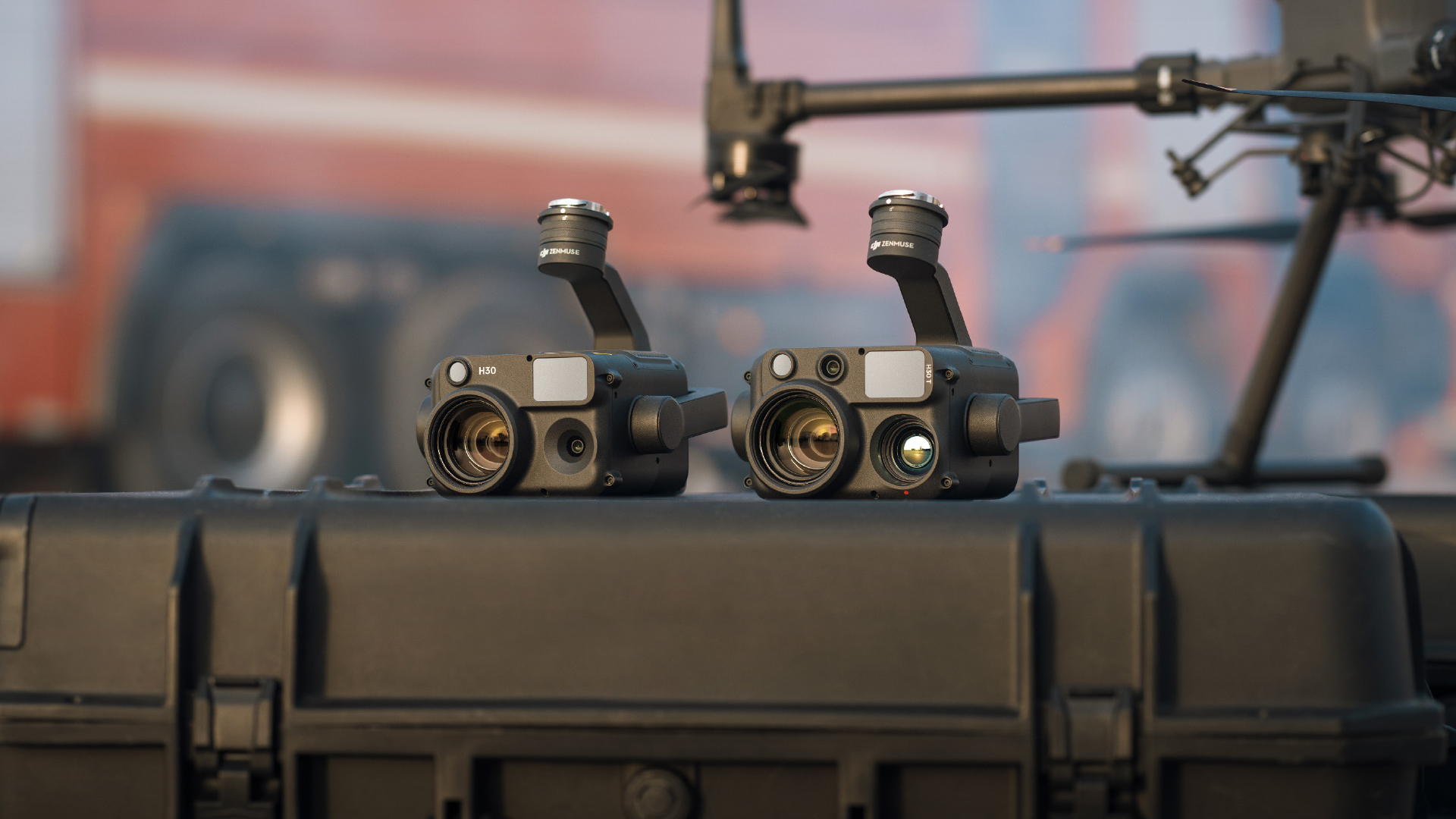

DJI continues to push the boundaries of innovation with the introduction of the Zenmuse H30 Series. Representing a leap forward in imaging capabilities, this cutting-edge series is poised to revolutionize various industries with its unparalleled vision, day or night.
Equipped with a suite of advanced sensors, the Zenmuse H30 Series is engineered to transcend the limitations of traditional aerial imaging. Designed to thrive in all-weather conditions, this flagship payload series boasts multi-sensor capabilities that redefine the possibilities in drone technology.
Key Capabilities and Integration
At the heart of the Zenmuse H30 Series are five integrated modules, each optimized for specific tasks:

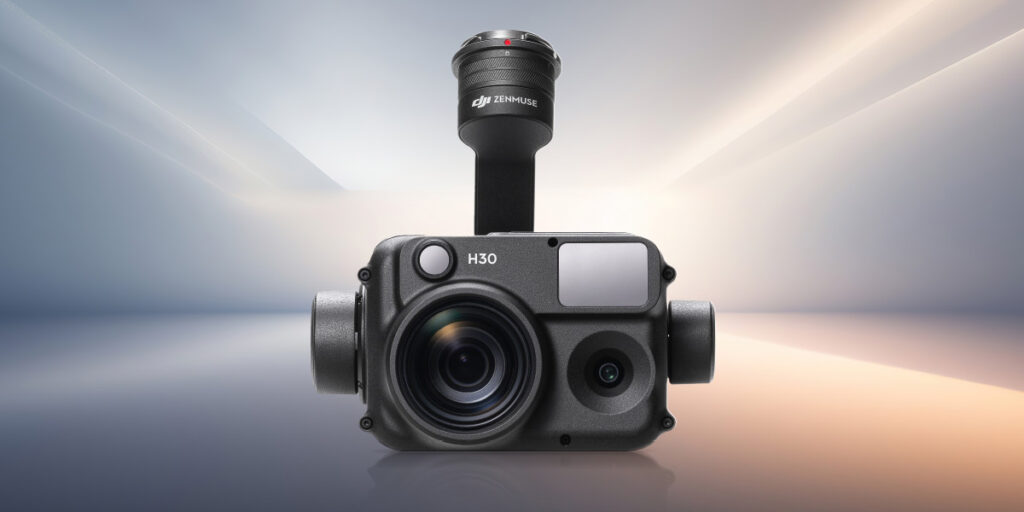

Wide-Angle Camera: Featuring a 1/1.3-inch CMOS sensor with an impressive 48MP effective pixel count, the wide-angle camera delivers crisp and detailed images even in challenging lighting conditions.
Superior Zoom Camera: With a 1/1.8-inch CMOS sensor and 40MP effective pixel count, the zoom camera provides unparalleled clarity and precision, offering up to 34x optical zoom and 400x digital zoom capabilities.

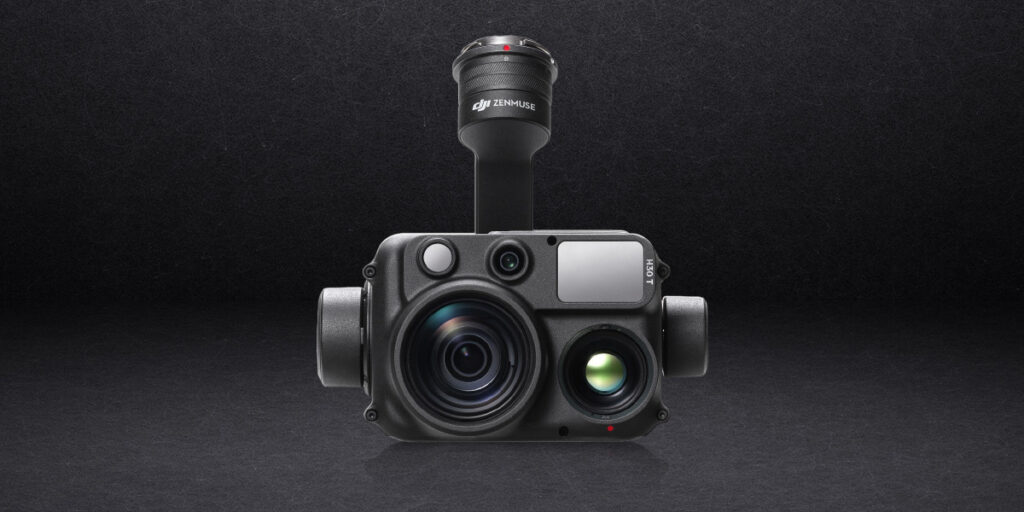

Powerful Infrared Thermal Camera (H30T only): Boasting a resolution of 1280×1024, the infrared thermal camera enables precise temperature measurements and detection, with an expanded temperature measurement range from -20°C to 1600°C (-4°F to 2912°F).
Laser Rangefinder (LRF): Offering a measurement range of 3-3000m (~9842 ft), the laser rangefinder provides accurate distance measurements, enhancing situational awareness and mission efficiency.
NIR Auxiliary Light: Supporting night operations, the NIR auxiliary light ensures optimal visibility in low-light conditions, further augmenting the Zenmuse H30 Series’ capabilities.
Zenmuse H30 vs. H20 Series: Elevating Performance
Compared to its predecessor, the Zenmuse H20 Series, the H30 Series introduces several enhancements that elevate its performance to unprecedented levels, including:
Superior Visible Light Capability: With up to 34x optical zoom and 400x digital zoom, the H30 Series offers enhanced clarity and detail, enabling drone pilots to capture intricate details from afar.
Enhanced Thermal Imaging: The H30T model features a significant improvement in thermal imaging capabilities, with a resolution boost from 640 × 512 to 1280 × 1024, and an extended temperature measurement range, opening up new possibilities for thermal inspections and analysis.
Night Scene Mode: The H30 Series introduces enhanced night scene modes with adjustable settings at 25fps, 15fps, and 5fps, coupled with support for NIR auxiliary light illumination, ensuring optimal performance in low-light environments.
Laser Rangefinder: The laser rangefinder of the Zenmuse H30 Series extends the detection range up to 3000m (~9842ft), providing users with enhanced situational awareness and precise distance measurements.
Compatible with the DJI Matrice 350 and Matrice 300 (only with DJI RC Plus), the H30 Series is set to revolutionize countless applications across public safety, energy inspection, water conservation, forestry, and more. Interested in learning more about how to enhance your operations with the DJI Zenmuse H30 Series? Reach out to one of our drone experts today!
