The Agras T40 supports multiple missions — from surveying, mapping, to spraying and spreading — all in one solution. With a massive payload increase of 30%, the aircraft provides enhanced spreading efficiency for superior agricultural performance.
DJI Agras T40
THE NEW FLAGSHIP FOR DIGITAL AGRICULTURE.
Achieve Ultimate Precision in Your Agricultural Operations
The Agras T40 is equipped with the revolutionary Coaxial Twin Rotor design, enabling it to carry a spray load of 40 kg and a spread load of 50 kg (70 L). The aircraft is built in with a Dual Atomized Spraying System, DJI Terra, Active Phased array Radar and Binocular Vision.
A POWERFUL TOOL FOR ROBUST AGRICULTURAL APPLICATIONS
The Latest Evolution in the Powerful Flagship Series
A solution with strong power, increased payload, and high efficiency, the Agras T40 brings unprecedented performance to agricultural operations.
Minimize Wasted Journeys for Greater Efficiency
50 kg Spreading Payload
Active Phased Array Radar +
Binocular Vision
Dual Atomized
Spraying System
Supports flight spraying/spreading and RC mapping
Core Modules IPX6K
EFI Generator
15% fuel saving
Agras T40 Enhanced Features
- Coaxial Twin Rotor
- Dual Atomized Centrifugal Sprinkler
- Magnetic Drive Impeller Pump
- Omnidirectional Obstacle Sensing
The AgrasT40 features a coaxial twin rotor design that increases the payload capacity by 30% with a maximum payload of 50 kg.
The revolutionary coaxial twin rotor design provides the T40 with a spray width of 11 meters. At the same time, it adopts a 54-inch propeller, which greatly improves its power efficiency.

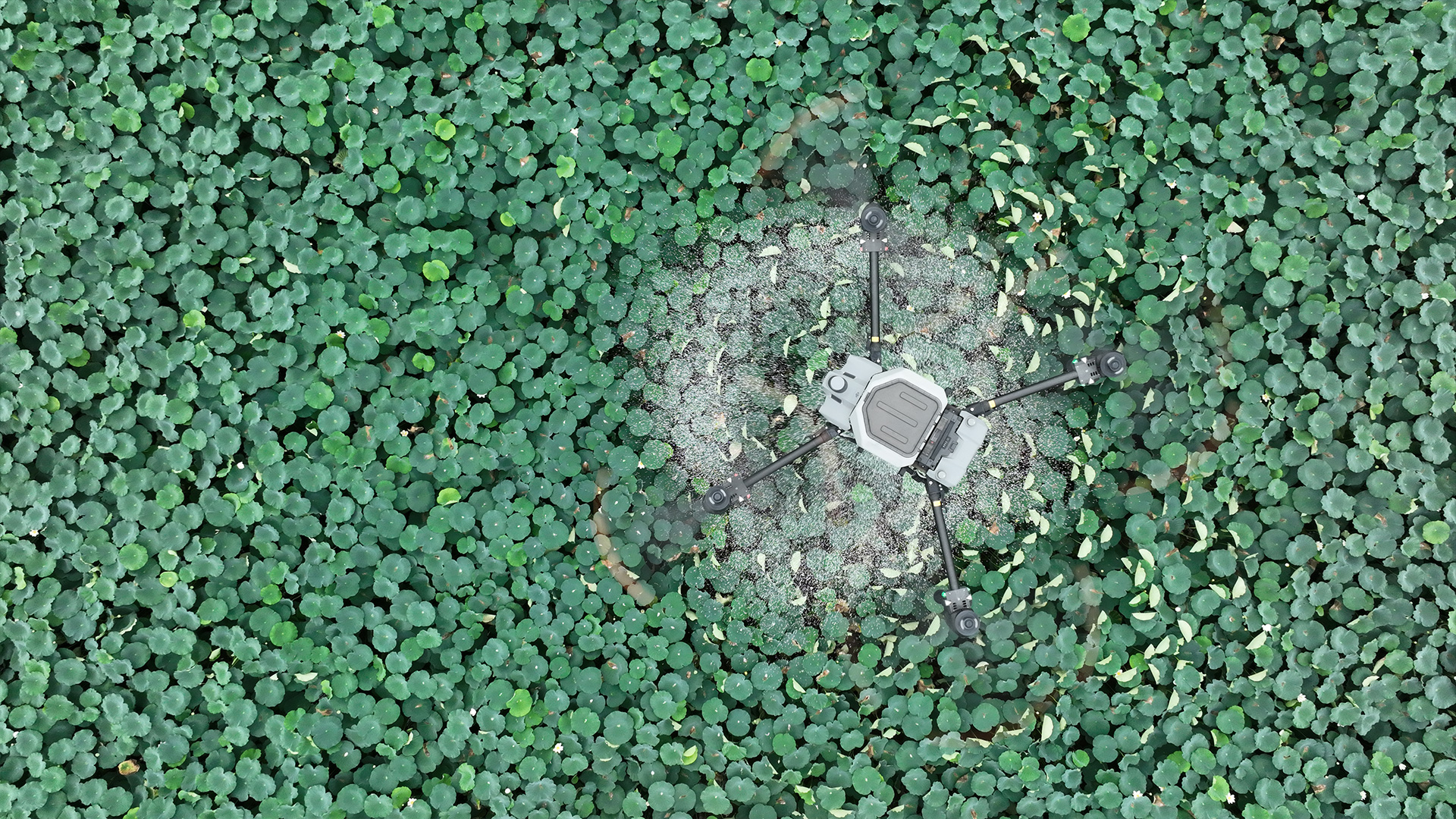

The dual atomized spray disc ensures even droplets and more efficient pesticide usage.
The proprietary centrifugal valve prevents leakage, avoids over-fertilization, and reduces pesticide use while protecting the environment.

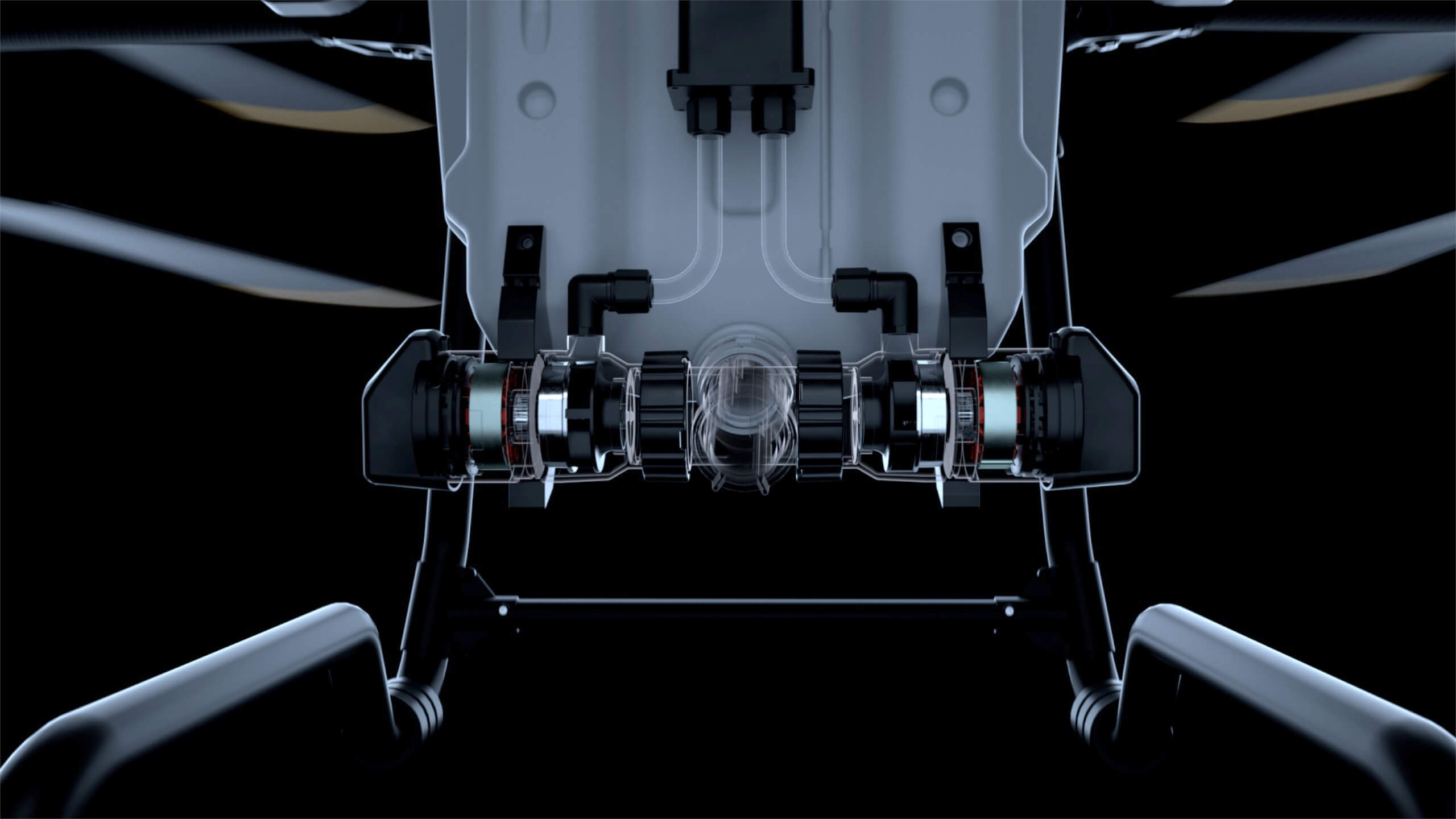

The new magnetic transmission design completely isolates the pesticide from the motor, making the aircraft corrosion-proof and ultra durable.
The new magnetic drive impeller pump provides a flow of 6L/min. Quickly disassemble by hand for easy cleaning.
The Active Phased Array Radar is incorporated with a binocular vision sensor system to provide 360-degree horizontal omnidirectional obstacle sensing, offering optimal security.
The detection distance of up to 50 m allows for intelligent terrain following, smooth scaling and bypassing of multiple obstacles.

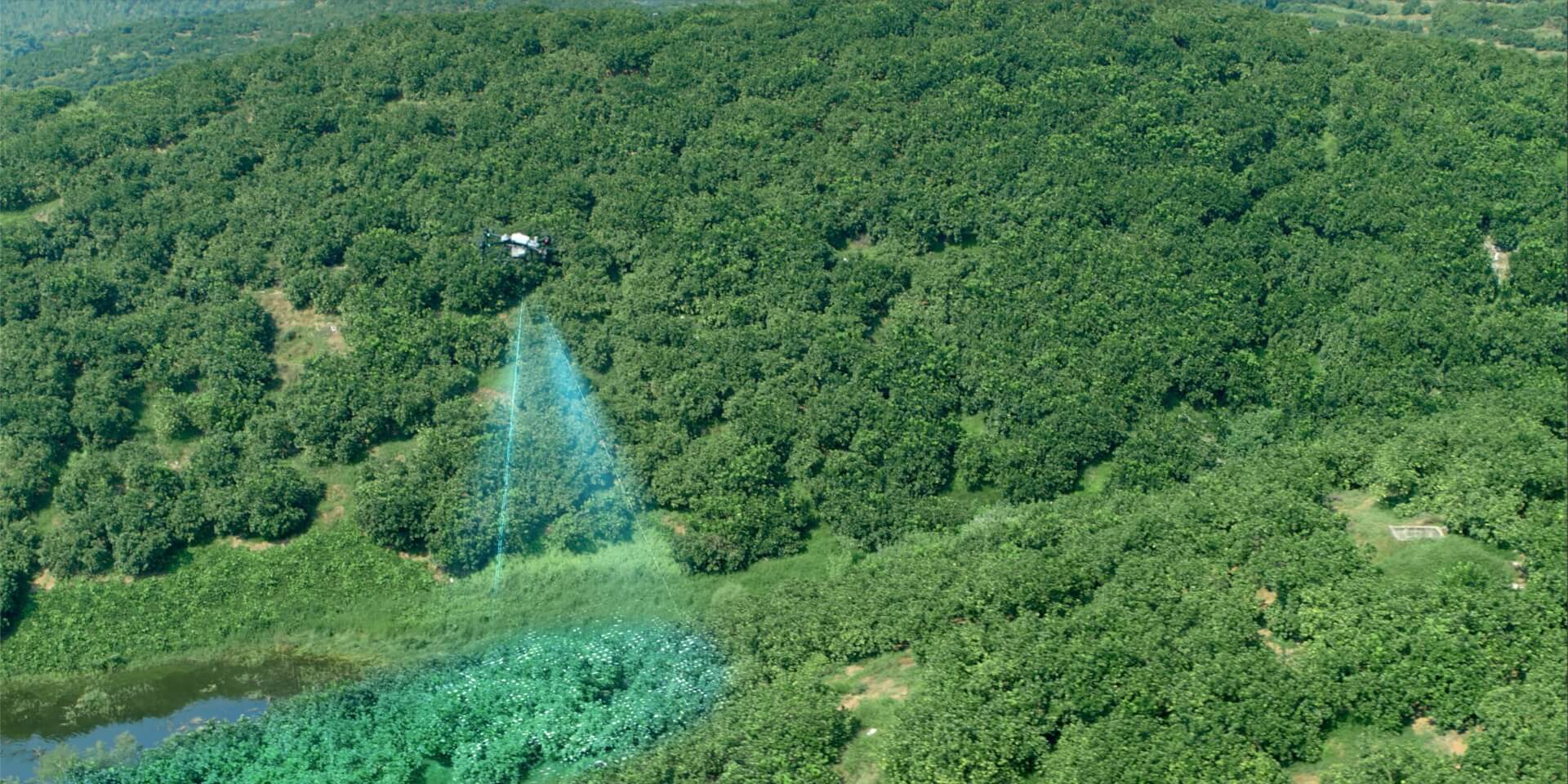

Mapping, Spraying and Spreading, All In One
The AGRAS T40 combines mapping, spraying and spreading functions, while its UHD camera and adjustable gimbal enable easy capture of your desired view. Farmland and orchard images can be captured in real time, and local maps can be generated using the remote controller with the D-RTK 2 Mobile Station.
The system detects land boundaries and obstacles automatically, for quicker planning of flight routes over farmland and hilly orchards.
Enhanced Remote Controller
The 8-core processor makes mapping of 6.67 hectares possible in 10 minutes. It minimizes wasted journeys with intelligent route planning, for greater efficiency.
The large 7-inch high brightness screen offers a broader view with refined detail. A wide range of custom physical buttons provides flexible control.
Ultra-Fast Charging

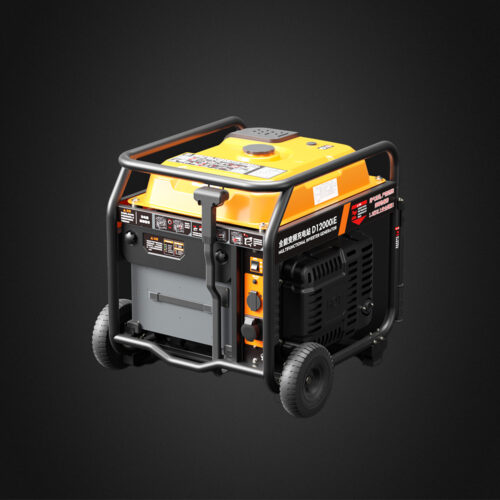

12000W Multifunctional Inverter Generator with new EFI technology and 15% fuel saving. The charging station produces 1500W AC output, sufficient to power the remote controller, water pump, reloader, lights, and other components.
The 30000mAh Intelligent Flight Battery with its standard air-cooled heat sink can cool down rapidly.
